GMCF-10 10G12C 10.7MHz 6 pole crystal filter with 12.0kHz 3dB bandwidth

  • Comprehensive stocks
  • Custom specifications available
Configurable Options
ParameterOption Code

The GMCF-10 10G12C has no configurable options.
Please see the specifications table for more details or contact our team today if you have other specification requirements.

Quantity / Special Request

Please specify the quantity you require below.

The GMCF-10 10G12C is supplied in boxes.
Product Description
The GMCF-10 10G12C 6 pole crystal filter from Golledge with centre frequency of 10.7MHz features a 12kHz 3dB bandwidth. Discover full specifications, including insertion loss and package size here.
Specifications
Centre frequency 10.7MHz
Dimensions 15.0 x 12.0 x 15.0mm
Operating temperature range -20 to +70°C
Number of poles 6
Pass band -3dB @ ±6.0kHz min
Attenuation band -65dB @ ±20.0kHz max
In-band ripple 2.0dB max
Insertion loss 3.0dB max
Guaranteed attenuation -65dB max ±20.0 ~ ±300kHz
Termination 3300Ω // 2.0pF
Package style F15/12B
Package Drawing

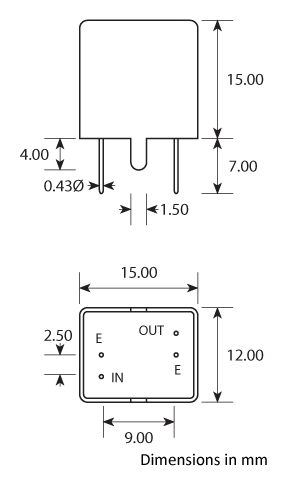

Golledge 15x12mm leaded crystal filter package
