2-pad 3.3x1.6mm crystal

CC7A-T1A

High Frequency SM Crystal for Military and Defence -55+125°C

  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
  • Low power consumption
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
Temperature stability / range
TA
TB
TC
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The CC7A-T1A is supplied on tape and reel. 1k, 3k, 7k or 14k pc per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The ultra-miniature CC7A-T1A provides excellent shock and vibration resistance specifications, including 5,000g shock resistance and 20g vibration resistance (10 ~2,000Hz range), making it ideal for specialist applications which require ultra-miniature components such as aviation and defence.

This high frequency crystal is available up from 20.0 ~ 50.0MHz, and features low drive level of 100uW typical for low power consumption, and gold plated pads for excellent solderability for specialist applications.

Specifications
Frequency range 20.0 ~ 50.0MHz
Dimensions 3.2 x 1.5 x 0.75mm
Storage temperature range -55 to +125°C
Static capacitance (C0) 0.7pF typ
Motional capacitance (C1) 2.0fF typ, 3.0fF max
Equivalent series resistance 40Ω typ, 100Ω max (20.0 ~ 31.99MHz)
25Ω typ, 60Ω max (32.0 ~ 50.00MHz)
Ageing ±3ppm max first year
Drive level 100µW typ, 250µW max
Shock resistance 5,000g, 0.3ms, ½ sine
Vibration resistance 20g, 10.0 ~ 2,000Hz
Terminations Gold plated pads
Soldering condition Reflow, 260°C, 20 sec max
Net mass 9.2mg

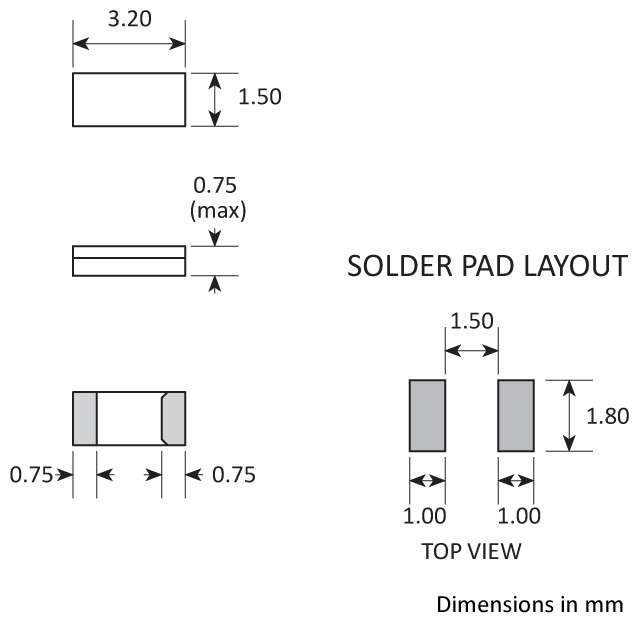

Package Drawing
Footprint
Ordering Information

To request a quotation for the CC7A-T1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178* B:12 C:3.5 D:1.8 E:4 F:1.1 G:80 H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
