Golledge CC5V series SMT Crystal

CC5V-T1A

Low Frequency SM Crystal -55+125°C

  • High shock & vibration resistance
  • Military temperature range -55+125°C option
  • Low power consumption
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
Operating temperature range
M
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The CC5V-T1A is supplied on tape and reel. 1k, 3k or 14k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The two pad ceramic package CC5V-T1A crystal with gold plated pads offers excellent solderability and high shock and vibration performance at extremely low frequencies.

The CC5V-T1A is available from 32.0 ~ 100kHz, is also optionally available with operating temperature range of -55 to +125°C, making it ideal for low frequency military and defence applications. This product also features low power consumption as standard.

Specifications
Frequency range 32.768kHz (standard)
32.0 ~ 100kHz
Dimensions 4.1 x 1.5 x 0.9mm
Storage temperature range -55 to +125°C
Static capacitance (C0) 1.4pF typ
Motional capacitance (C1) 2.1fF typ
Equivalent series resistance 60kΩ typ, 80kΩ max @ 25°C
Ageing ±3ppm max first year
Drive level 1.0µW max
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.035ppm/°C2 ±10%
Shock resistance ±5ppm, 5,000g, 0.3ms, ½ sine
Vibration resistance ±5ppm, 20g, 10.0 ~ 2,000Hz
Terminations Gold plated pads
Soldering condition Reflow, 260°C, 20 sec max

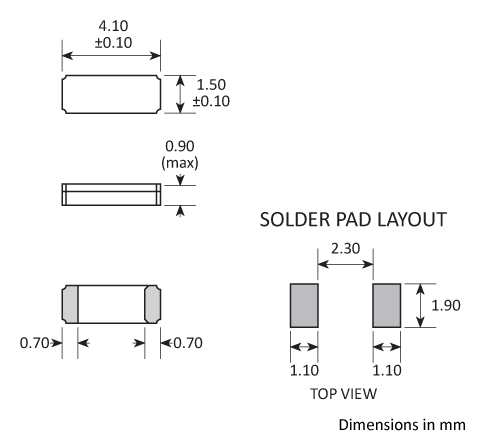

Package Drawing
Package footprint and pad configuration drawing for the Golledge CC5V-T1A Crystal showing full dimensions.
Ordering Information

To request a quotation for the CC5V-T1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications

A:178* B:12 C:4.4 D:1.8 E:4 F:1.1 G:80 H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
