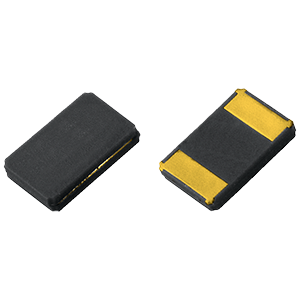

2-pad 5032 crystal


SM Crystal for extreme environments -55+200°C

  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 200°C
  • High stability & low ageing under extremes
  • High shock & vibration resistance
  • Ultra low MSL
Configurable Options
ParameterOption Code
Temperature stability
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The CC2A-T1AH is available supplied either on tape and reel or packaged within trays. T&R standard pack size is 1k or 2k pcs and standard tray size is 100pcs per tray. Partial quantities may be supplied on tape (no reel), partial trays, or in bulk.

Product Description

Developed specifically for use within harsh and extreme environments, the CC2A-T1AH crystal features extreme operating temperature range options including -55 to +200°C, gold plated pads for extra longevity, and extremely good shock resistance of 10,000g and vibration resistance of 40g rms 10.0 ~ 2,000Hz.

Available from 14.0 ~ 40.0MHz the CC2A-T1AH also features high stability and low ageing specifications under extreme environments, and an ultra low moisture sensitivity level.

The CC2A-T1AH comes encased within a 5.0 x 3.2 x 1.2mm package, for a smaller package option please consider the CC6A-T1AH.

Frequency range 14.0 ~ 40.0MHz
Dimensions 5.0 x 3.2 x 1.2mm
Calibration tolerance (@ 25°C) ±50ppm
Storage temperature range -55 to +125°C
Oscillation mode Fundamental
Equivalent series resistance 70Ω typ, 120Ω max (14.0 ~ 17.99MHz)
50Ω typ, 100Ω max (18.0 ~ 23.99MHz)
40Ω typ, 80Ω max (24.0 ~ 40.0MHz)
Motional capacitance (C1) 5fF typ, 8fF max (14.0 ~ 17.99MHz)
8fF typ, 10fF max (18.0 ~ 23.99MHz)
10fF typ, 12fF max (24.0 ~ 40.0MHz)
Static capacitance (C0) 2.5pF typ (14.0 ~ 17.99MHz)
3.0pF typ (18.0 ~ 23.99MHz)
4.0pF typ (24.0 ~ 40.0MHz)
Ageing ±3ppm max first year
Drive level 100µW typ, 250µW max
Shock resistance 10,000g, 0.3ms, ½ sine
Vibration resistance 40g rms 10.0 ~ 2,000Hz
Terminations Gold plated pads
Soldering condition 260°C, 20s max
Package Drawing
Package footprint and pad configuration drawing for the Golledge CC2A Crystal showing full dimensions.
Ordering Information

To request a quotation for the CC2A-T1AH please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178* / B:12 / C:5.3 / D:3.5 / E:8 / F:1.4 / G:80 / H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)


Ceramic base and lid


PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
