Golledge CC1 series crystal

CC1A-T1A

SM Crystal -55+125°C

  • Fundamental mode
  • High shock & vibration resistance
  • Military temperature range -55+125°C option
  • Low power consumption
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
Temperature stability / range
M
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The CC1A-T1A is available supplied either on tape and reel or packaged within trays. T&R standard pack size is 1k or 4k pcs and standard tray size is 100pcs per tray. Partial quantities may be supplied on tape (no reel), partial trays, or in bulk.

Product Description

The gold plated pads of the CC1A-T1A offer excellent longetivity and solderability for specialist applications.

This fundamental mode crystal features excellent shock resistance of 5,000g and vibration resistance of 20g (10.0 - 2,000Hz) and military standard operating temperature range of -55 to +125°C, making it ideal for a range of military and defence applications.

The CC1-T1A is available in frequencies from 8.0 ~ 30.0MHz and with a choice of circuit conditions.

Specifications
Frequency range 8.0 ~ 30.0MHz
Dimensions 8.0 x 3.7 x 1.75mm
Storage temperature range -55 to +125°C
Static capacitance (C0) 2.0pF typ @ 8.0MHz
2.8pF typ @ 16.384MHz
4.0pF typ @ 24.0MHz
Motional capacitance (C1) 4.0fF typ @ 8.0MHz
8.0fF typ @ 16.384MHz
11.0fF typ @ 24.0MHz
Equivalent series resistance 60Ω typ, 100Ω max @ 8.0MHz
35Ω typ, 60Ω max @ 16.384MHz
30Ω typ, 40Ω max @ 24.0MHz
Ageing ±3ppm max first year
Drive level 100µW typ, 500µW max
Shock resistance ±5ppm, 5,000g, 0.3ms, ½ sine
Vibration resistance ±5ppm, 20g, 10.0 ~ 2,000Hz
Soldering condition Reflow, 260°C, 20 sec max
Terminations Gold flashed pads
Package Drawing

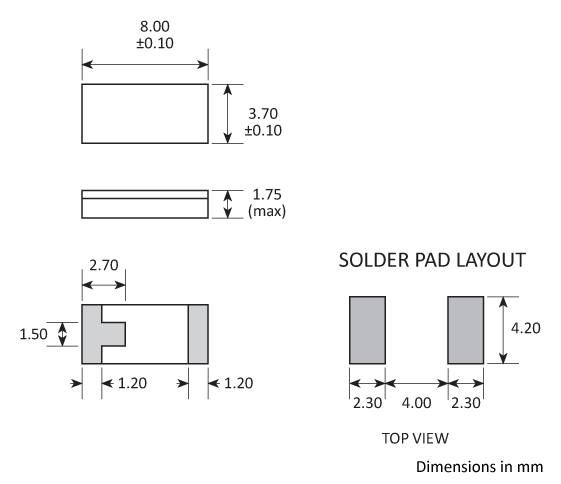

Package footprint and pad configuration drawing for the Golledge CC1A Crystal showing full dimensions.
Ordering Information

To request a quotation for the CC1A-T1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications

A:178* B:16 C:8.5 D:4.4 E:8 F:2 G:80 H:21
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
