1610 Ultra low profile crystal package

CM9V03-T1A

1610 Package Low Profile 32.768kHz SM Watch Crystal

  • Ultra low profile - 0.35mm
  • High shock & vibration resistance
  • Extended temperature range option
  • Ultra-miniature 1610 form factor package
  • Low power consumption
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Calibration tolerance
Operating temperature range
E
M
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The CM9V03-T1A is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The CM9V03-T1A is an ultra-miniature 1610 package 32.768kHz solution with an ultra-low profile package of just 0.35mm.

This crystal features high shock and vibration resistance within a miniature 1.6 x 1.0mm ceramic package with metal lid. The ultra-low profile of this crystal makes it suitable for a wide range of applications, including extremely close board stacking.

This tiny surface mount watch crystal is available in military and extended operating temperature ranges, and features low drive level of just 0.5μW max.

If you're designing for a high-volume commercial or consumer project and can accept a higher profile component, please consider our GWX-1610 or CM9V-T1A, 1610 form factor crystals as a more competitive option.

Specifications
Frequency 32.768kHz
Dimensions 1.6 x 1.0 x 0.35mm
Storage temperature range -55 to +125°C
Static capacitance (C0) 1.4pF typ
Motional capacitance (C1) 6.0fF typ
Equivalent series resistance (ESR) 90kΩ max @ 25°C
Ageing ±3ppm max first year
Drive level 0.5µW max
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.035ppm/°C2 typ
Shock resistance ±5ppm, 5,000g, 0.3ms, ½ sine
Vibration resistance ±5ppm, 20g, 10.0 ~ 2,000Hz
Terminations Gold plated pads
Soldering condition Reflow, 260°C, 20-40 seconds
Net mass 2.21mg

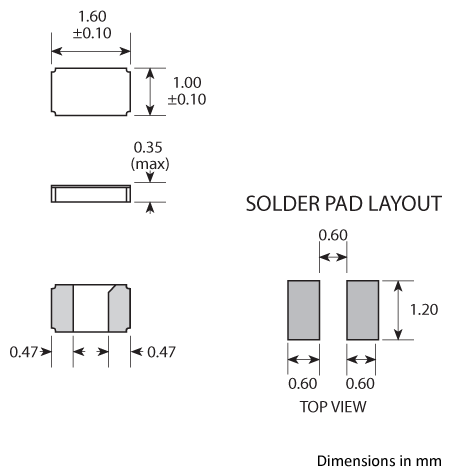

Package Drawing
Footprint
Ordering Information

To request a quotation for the CM9V03-T1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178 B:8 C:1.8 D:1.2 E:4 F:0.5 G:61.5 H:21

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base with metal lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
