Introducing the OM7605C9, an ultra-miniature 1610 footprint 32.768kHz oscillator with excellent shock and vibration resistance

25 Jun 2019


The OM7605C9 32.768kHz oscillator is our latest introduction to our range and features extended operating temperature range combined with an ultra-miniature package.

The OM7605C9 measures just 1.6 x 1.0 x 0.6mm, making it suitable for a very wide range of applications which require extended operating temperature range of -40 to +125°C combined with an ultra-miniature footprint, such as aerospace, drones and tracking devices.

This 32.678kHz oscillator is operable over a wide voltage range of 1.6 ~ 5.5V, and consumes just 0.45uA typ. in backup mode. It also features fast start up time of just 50ms typical at 25°C.

The OM7605C9 is fully suitable for applications which require excellent shock and vibration resistance as it features shock performance of ±5ppm, 5,000g, 0.3ms ½-sine and vibration performance of ±5ppm, 20g rms 10.0 ~ 2,000Hz.

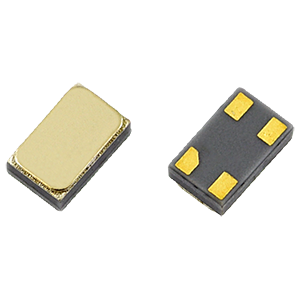

The OM7605C9 32.768kHz oscillator features and ultra-miniature 1610 footprint and ultra-low current consumption.
