Golledge 2-pad GSX-1C package

GSX-1C

Two Pad SM Crystal with Ceramic Package

  • Fundamental mode up to 50.0MHz
  • Large stocks of standard frequencies
  • Alternative terminal configurations
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
3
5
Temperature stability
3
5
C
Operating temperature range
1
2
4
Circuit condition
B
D
E
F
J
S
Oscillation mode
F
3
Quantity / Special Request

Please specify the quantity you require below.

The GSX-1C is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSX-1C crystal comes in a two-pad fully ceramic SM package with extended pitch between pads of 5.08kmm. Available in a variety of oscillation modes, including fundamental up to 50.0MHz, in frequencies from 5.0-84.0MHz, and with a range of temperature stabilities and operating temperature ranges up to -40 to +85°C.

This crystal presents a highly cost effective 2-pad solution for low to mid-volume applications and is available on short leadtimes for custom frequencies.

The GSX-1C offers a pad compatible drop in replacement for the larger GSX-9 and GSX-11 products.

Specifications
Frequency range 5.0 ~ 84.0MHz
Dimensions 7.5 x 5.0 x 1.4mm
Package GSX-1C
Static capacitance (C0) 7pF max
Equivalent series resistance 80Ω max (5.0 ~ 7.99MHz)
60Ω max (8.0 ~ 9.99MHz, fund)
50Ω max (10.0 ~ 15.99MHz, fund)
40Ω max (16.0 ~ 50.0MHz, fund)
60Ω max (28.0 ~ 84.0MHz, 3rd OT)
Ageing ±5ppm max first year
Test drive level 100µW
Soldering condition 260°C, 10 sec x2 max

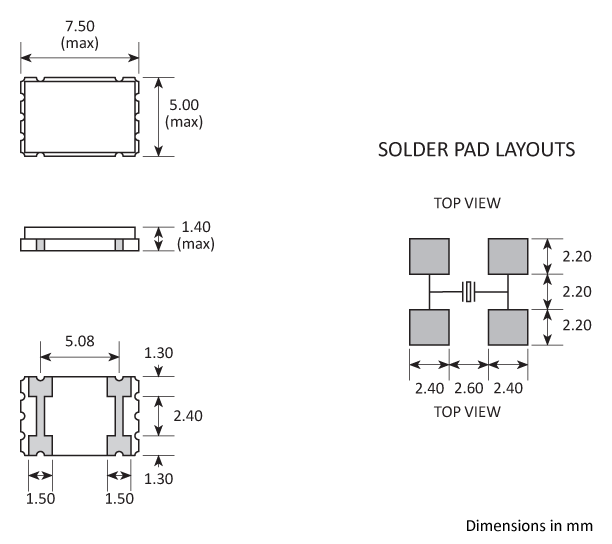

Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-1C Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-1C please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:250 B:16 C:7.9 D:5.4 E:8 F:2.2 G:80 H:25

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
