2012 package ultra-miniature watch crystal

CM8V03-T1A

Ultra-Miniature Low Profile 32.768kHz SM Watch Crystal

  • Ultra low profile - 0.35mm
  • High shock & vibration resistance
  • Extended temperature range option
  • Ultra-miniature 2012 form factor package
  • Low power consumption
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Calibration tolerance
Operating temperature range
E
M
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The CM8V03-T1A is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The ultra-miniature CM8V03-T1A offers a 32.768kHz solution with an ultra-low profile package of just 0.35mm, and high shock and vibration resistance within a miniature ceramic package with metal lid. The ultra-low profile of this crystal makes it suitable for a wide range of applications, including extremely close board stacking.

This tiny surface mount watch crystal is available in military and extended operating temperature ranges, and features low drive level of just 0.5uW max.

If you're designing for a high-volume commercial or consumer project and can accept a higher profile component, please consider our GWX-2012 or CM8V-T1A, 2012 form factor crystals as a more competitive option.

Specifications
Frequency 32.768kHz
Dimensions 2.0 x 1.2 x 0.35mm
Storage temperature range -55 to +125°C
Static capacitance (C0) 1.2pF typ
Motional capacitance (C1) 4.7fF typ
Equivalent series resistance 90kΩ max
Ageing ±3ppm max first year
Drive level 0.5µW max
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.035ppm/°C2 typ
Shock resistance ±5ppm, 5,000g, 0.3ms, ½ sine
Vibration resistance ±5ppm, 20g, 10.0 ~ 2,000Hz
Terminations Gold plated pads
Soldering condition Reflow, 260°C, 20-40 seconds
Net mass 3.38mg

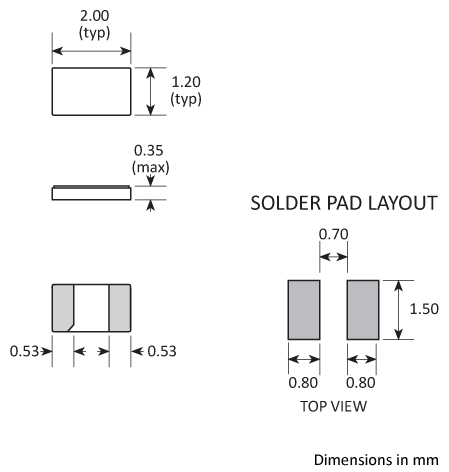

Package Drawing
Footprint
Ordering Information

To request a quotation for the CM8V03-T1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178 B:8 C:2.2 D:1.4 E:4 F:0.6 G:61.5 H:21

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base with metal lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
